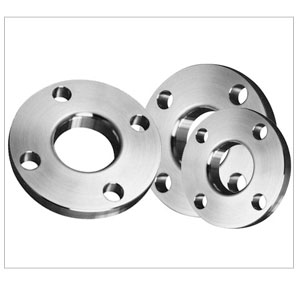

Brandstock Solutions LLP is acknowledged as a manufacturer, exporter & suppliers of Lapped Joint Flange & Stainless steel Flanges (Gr. 304, 304L, 316, 316L) available in a variety or grades, materials, and finishes, in metric and inch sizes. These Lapped Joint Flange are manufacture in different Material of Flanges like SORF Flanges, Carbon Steel Lapped Joint Flanges, Stainless Steel Lapped Joint Flanges, Alloy Steel Lapped Joint Flanges, Duplex Steel Lapped Joint Flanges, Inconel Lapped Joint Flanges, Monel Lapped Joint Flanges, Hastelloy Lapped Joint Flanges, Copper Nickel Lapped Joint Flanges in India & Asia, conform to Slip On specifications.
Lap Joint Flanges are similar to other types of industrial flanges, but it does not have a raised face. Lap joint flanges are used in conjunction with a “Lap Joint Stub End”. The total initial cost of a lap joint flange along with a stub end is around one-third higher than that of comparable welding neck flanges. The pressure holding capacity of lap joint flanges is comparatively lower, and the fatigue life for the assembly is only one tenth that of welding neck flanges.The lap joint flange with the stub end assembly is normally used in piping systems which require regular dismantling for inspection and cleaning. These flanges slip over the pipe, and are not welded or otherwise fastened to it. Bolting pressure is transmitted to the gasket by the pressure of the flange against the back of the pipe lap (Stub End).
LAP JOINT FLANGES, LJ FORGED FLANGES PRODUCTION RANGE
Size: 1/2″ (15 NB) to 48″ (1200NB)
Standards: ISO, ANSI, JIS, DIN, ASME B16.
Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Lap Joint Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Lapped Joint Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Lap Joint Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Lap Joint Flanges: ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Lap Joint Flanges: Duplex, Super Duplex, Nickel Alloys
Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services: CNC Machining, Customised Flanges
Diameter : 1/2″ to 24″
150 LBS
| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore | Dia.(D) | Thick.(E) | Dia.(B) | Dia.(A) | Height(H) | Nbr | Holes | Dia.(C) |
| 1/2″ | 90 | 11.2 | 30 | 22.9 | 16 | 4 | 15.87 | 60.3 |
| 3/4″ | 100 | 12.7 | 38 | 28.2 | 16 | 4 | 15.87 | 69.9 |
| 1″ | 110 | 14.3 | 49 | 34.9 | 17 | 4 | 15.87 | 79.4 |
| 1 1/4″ | 115 | 15.9 | 59 | 43.7 | 21 | 4 | 15.87 | 88.9 |
| 1 1/2″ | 125 | 17.5 | 65 | 50.0 | 22 | 4 | 15.87 | 98.4 |
| 2″ | 150 | 20.7 | 78 | 62.5 | 25 | 4 | 19.05 | 120.7 |
| 2 1/2″ | 180 | 22.3 | 90 | 75.4 | 29 | 4 | 19.05 | 139.7 |
| 3″ | 190 | 23.9 | 108 | 91.4 | 30 | 4 | 19.05 | 152.4 |
| 3 1/2″ | 215 | 23.9 | 122 | 104.1 | 32 | 8 | 19.05 | 177.8 |
| 4″ | 230 | 23.9 | 135 | 116.8 | 33 | 8 | 19.05 | 190.5 |
| 5″ | 255 | 23.9 | 164 | 144.4 | 36 | 8 | 22.22 | 215.9 |
| 6″ | 280 | 25.4 | 192 | 171.4 | 40 | 8 | 22.22 | 241.3 |
| 8″ | 345 | 28.6 | 246 | 222.2 | 44 | 8 | 22.22 | 298.5 |
| 10″ | 405 | 30.2 | 305 | 277.4 | 49 | 12 | 25.40 | 362.0 |
| 12″ | 485 | 31.8 | 365 | 328.2 | 56 | 12 | 25.40 | 431.8 |
| 14″ | 535 | 35.0 | 400 | 360.2 | 79 | 12 | 28.57 | 476.3 |
| 16″ | 595 | 36.6 | 457 | 411.2 | 87 | 16 | 28.57 | 539.8 |
| 18″ | 635 | 39.7 | 505 | 462.3 | 97 | 16 | 31.75 | 577.9 |
| 20″ | 700 | 42.9 | 559 | 514.4 | 103 | 20 | 31.75 | 635.0 |
| 24″ | 815 | 47.7 | 663 | 616.0 | 111 | 20 | 34.92 | 749.3 |
